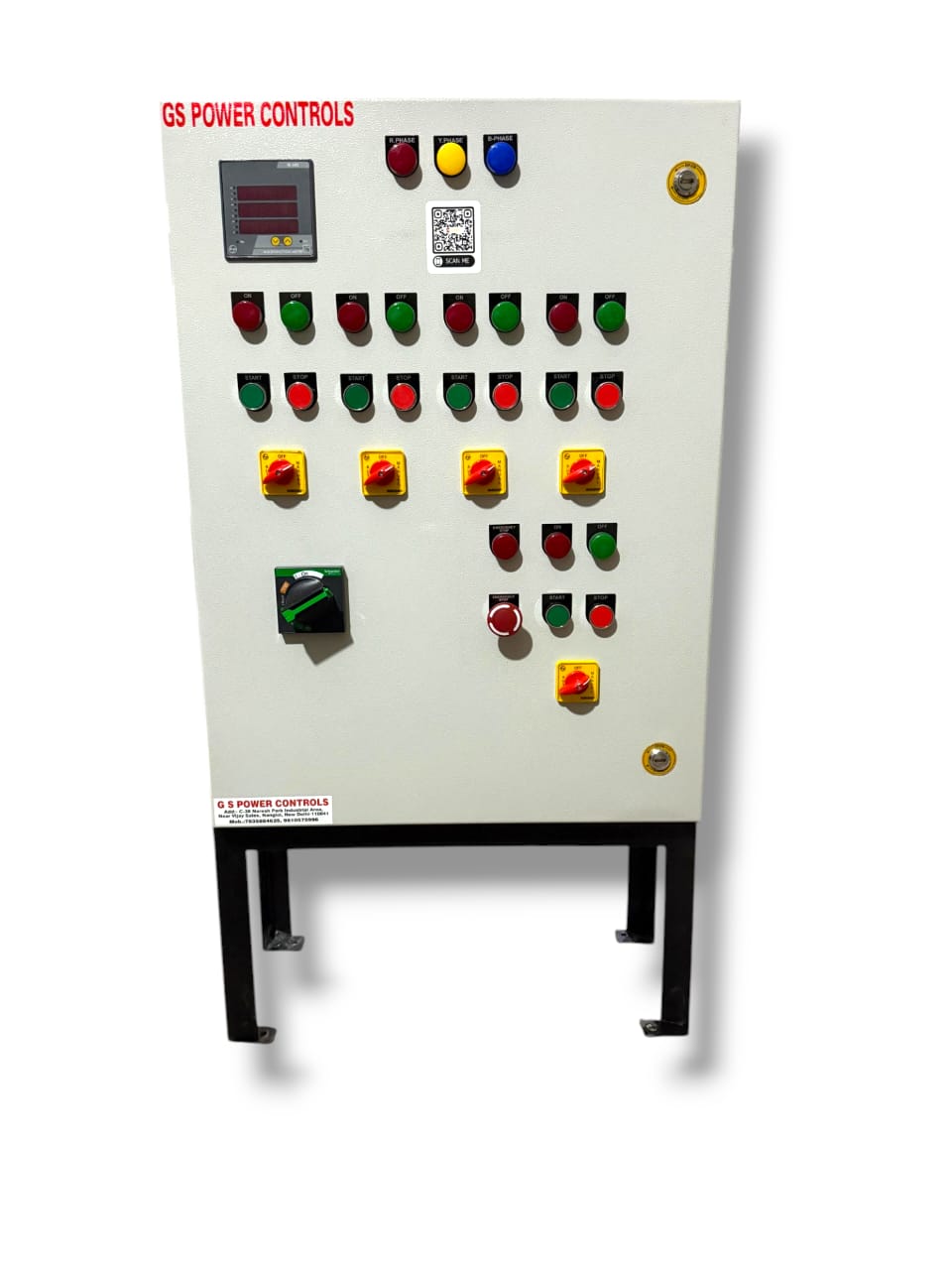

Pump Starter Panel These panels manage electric motors driving pumps. They include components like starters, overload protectors, contactors, timers, float switches, and more. Widely used for submersible, borewell, industrial, or HVAC pumping systems Key Types of Starter Panels: Single-Phase Panels – Ideal for residential well pumps (up to ~2 HP), offering overload, voltage protection, dry‑run cut-off and timer functions (Amazon). Three-Phase Panels – Designed for heavy-duty or industrial pumps; available with DOL (Direct-On-Line) starters or star‑delta configurations to reduce starting current for larger motors (iliosindia.com). Soft Starter & VFD Units – Use electronic controls to gradually ramp up motor input (minimize inrush current) and for variable speed control for advanced energy efficiency and system integration (shreeref.com). 🔍 Typical Features by Use Case Feature Single‑Phase Residential Small Three‑Phase (Star‑Delta) Soft Starter/VFD Industrial Motor Starting Method Contactor + MCB + capacitor Star/Delta transition to reduce start current Electronic/solid-state ramp-up Protections Overload, dry‑run timer, voltage filter ± Overload, under/over-voltage, phase failure, optional float control Turbo protections, phase loss, thermal sensors, auto bypass Controls Start/Stop push buttons, LEDs, analog or digital meters Selector switch (Local/Auto), timers, signal LEDs, float sensors(optional) PLC/display, soft‑ramp delay, remote control Enclosure IP33‑IP55, steel or plastic box IP55 or higher, powder-coated CRCA or SS panel, labelled NEMA/IP-rated, ventilated, optionally with bypass switch Use Cases Homes, small borewell pumps Industrial or agricultural medium-size pumps (7.5–50 HP) Large process pumps, energy-saving, remote control, integration ✅ Choosing the Right Starter Panel Pump Power & Voltage: Single-phase panels work up to ~2 HP; star‑delta common for 7.5–50 HP three-phase applications; soft starters or VFDs for higher or variable load systems. Protection Needs: Ensure overload relay, voltage protection, dry‑run, phase loss and earth‑fault protection as required. Automation Requirements: Float switches for water level control, auto-start/stop timers, remote/local select, data logging or GSM/PT monitoring. Standards & Build Quality: Look for IS/IEC/IEC 60947 conformity, IP ratings (IP55+), reliable CRCA sheet or stainless steel enclosures, proper labeling and accessible wiring termination (sovereignpumps.com, motorstarters.co.in, shreeref.com, subtech.co.in, johnselectric.in, iliosindia.com, jaincoelectricals.com, globalpumps.co.in). Ease of Maintenance: Use modular designs for quick service, replaceable fuses/contactors, and labeled components (Crompton). Brand & Support: Products from established manufacturers (e.g., Crompton, MAG, Johns Electric) with warranty and support give higher reliability (johnselectric.in). 🧰 Recommended Use Scenarios Domestic borewell pumps (0.5–2 HP): Single-phase starter panels with dry-run protection and timer auto-off (e.g. Crompton ARMOR, Vukar BOM‑E models) (Crompton). Small to medium industrial/agricultural pumps (7.5–50 HP): Star‑delta or DOL starter panels with float switch, overload relay, short-circuit protection, and voltage sensors (MAG Chota series, Global Pumps range) (motorstarters.co.in). Larger or precision-demand setups: Use soft starters or VFD panels for lower energy consumption, smooth ramp-up, remote control, and motor protection (Shree Refrigeration, Eaton‑grade assemblies) (shreeref.com). 🧩 Final Note Select a panel rated for your motor and voltage. Confirm it includes essential protection: overload, voltage, dry‑run, and phase detection. Ensure compliance with IEC/IS & enclosure IP norms for safety and durability. Consider automation features (float sensors, timers, remote control) for user convenience and motor longevity. Buy from reputable manufacturers with after-sales support and documented certifications.
