Description
Product details

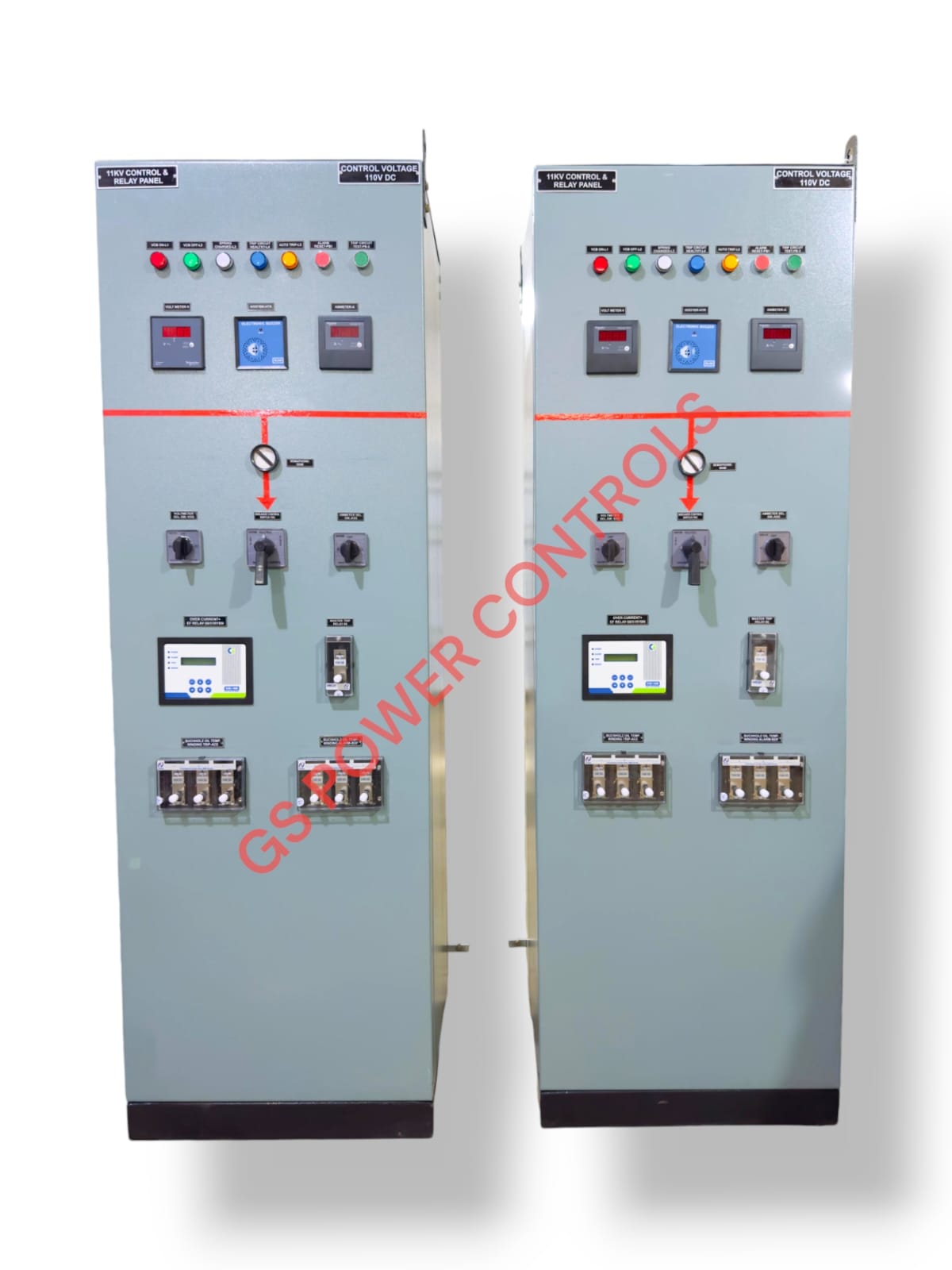

11kV C&R (Control and Relay) Panel is a critical component of electrical substations or distribution systems, particularly for medium-voltage networks. It serves the purpose of controlling and protecting electrical equipment like transformers, circuit breakers, and other critical systems from faults or abnormal conditions. ### Key Functions of an 11kV C&R Panel: 1. **Control**: It allows operators to remotely or manually control the operation of circuit breakers, isolators, and other equipment in the 11kV system. Control operations may include opening, closing, and switching the power flow. 2. **Protection**: The panel provides protection against faults in the electrical system such as overloads, short circuits, and earth faults. It uses protective relays to detect abnormal conditions and disconnect the faulty sections to prevent damage to equipment. 3. **Relay Monitoring**: Relays within the panel continuously monitor voltage, current, and other parameters to ensure the safe operation of the system. If a fault is detected, the relays will send signals to trip the circuit breakers to isolate the faulted section. 4. **Alarms and Indications**: The panel typically includes visual indicators such as lights, alarms, and meters to inform operators of normal or abnormal system conditions (e.g., fault indications, overloads). 5. **Automation and Communication**: Modern C&R panels are equipped with communication protocols for remote monitoring and control via SCADA (Supervisory Control and Data Acquisition) systems or other automation tools. ### Typical Components of an 11kV C&R Panel: - **Circuit Breaker Control**: For opening and closing breakers. - **Protective Relays**: For overcurrent, earth fault, differential, and under/over-voltage protection. - **Metering Instruments**: For current, voltage, and power monitoring. - **Indicators and Alarms**: For fault detection and status display. - **CT (Current Transformer) and PT (Potential Transformer) Inputs**: To measure electrical parameters for protection and monitoring. - **Switchgear and Isolators**: For isolating portions of the system during maintenance or fault conditions. - **Microprocessor-based Protection and Control Units**: These are used for more advanced functions like automation, event logging, and remote communication. ### Common Protection Functions in an 11kV C&R Panel: 1. **Overcurrent Protection (OC)**: Detects overload conditions and trips the breaker if current exceeds a preset value. 2. **Earth Fault Protection (EF)**: Detects earth faults and isolates the faulted section. 3. **Differential Protection (DF)**: Protects transformers and other equipment by detecting differences in current between the primary and secondary windings. 4. **Under/Over Voltage Protection**: Trips the circuit if the voltage falls below or rises above the specified limits. 5. **Time-Delay Functions**: Delays the tripping for a specified period to avoid nuisance tripping under transient conditions. ### Applications: - **Substations**: For the protection and control of 11kV feeders, transformers, and other substation equipment. - **Industrial Plants**: To protect 11kV power distribution networks within factories or large industrial plants. - **Power Distribution Networks**: For safe and reliable power distribution in urban or rural areas. In essence, the 11kV C&R panel ensures that the electrical network is safeguarded from faults, is controlled efficiently, and operates reliably, which is crucial for maintaining stable power supply and preventing damage to expensive equipment.
